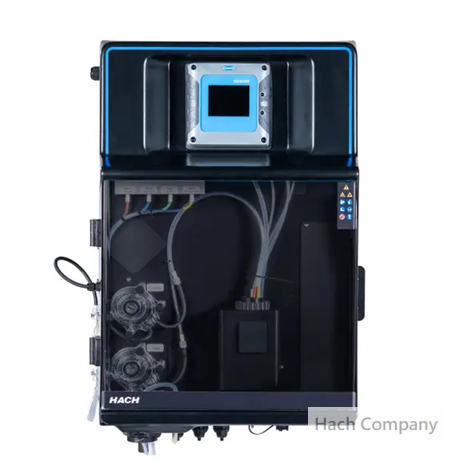

水中硫化物線上分析儀 EZ1037 Sulfide Analyzer
產品編號：EZ1037.XXXXXXXX
Online colorimetric analysis of Sulfide in water
高精密型線上比色法監測水中硫化物濃度，符合人體工學設計，體積精巧。高精密度和準確度，檢出限可低至ppb級。
EZ1000 Sulfide Analyzers achieve excellent precision and accuracy. At the heart of the colorimeter there is a compact photometer assembly developed especially for the EZ Series. Consumption of reagents is reduced by low volume analysis, yet high sensitivity is assured by a long optical path length. The limit of detection is in the low µg/L range.
Results you can rely on
Smart automatic features for calibration, validation, priming and cleaning are embedded in the controller software and contribute to analytical performance, maximized uptime and negligible operator intervention. Precision micropumps dose all reagents. Sample lines and analysis vessel are cleaned with demineralized water to eliminate cross contamination between samples. Electronic and wet-chemical part of the analyzer are strictly separated. A transparent door allows for instant visual inspection of the wet part.
校正、驗證、啟動和清潔的智慧自動功能內建於控制器軟體，協助提高分析效能、最佳化正常運行時間。 精密微型泵計量所有試劑。 水樣管線和分析容器以軟化水清洗，以消除水樣之間的交叉污染。 分析儀的電子部分和濕化學部分嚴格分隔。 透明門設計讓操作人員能即時目視檢查。
Flexibility that meets your needs
EZ Series Sulfide Analyzers come in an attractive, ergonomic mainframe with a compact footprint. All hardware is controlled by the integrated industrial panel PC. The modular build allows for the analyzer to match your application and operational needs.
運作穩定，模組化精巧型設計，占地面積小，整合工業面板PC控制準確及時監測水質狀態，有助於操作管理人員快速反應採取應變措施。
- The standard measuring range can be narrowed by a different calibration range or extended via internal dilution options.
- Analog and digital output options 類比或數位輸出(可選)
- Multiple stream analysis for up to 8 sample streams 多通道水樣流分析 (多達8通道可選配)
Measurement Method 測試方法: Colorimetric measurement at 670 nm using N,N-dimethyl-p-phenylenediamine dihydrochloride (NNDP), conform with standard method ASTM 4500-S2- D
Range 量測範圍 : 50 - 500 µg/L S2-
Optional 可選內部稀釋功能 :
0.2 - 2 mg/L (with internal dilution)
0.4 - 4 mg/L (with internal dilution)
5 - 50 mg/L (with internal dilution)
Number of sample streams 水樣流管路 : 1, 2, 4, or 8
Calibration 校正 : Automatic, 2-point; frequency freely programmable
Automatic cleaning 自動清潔 : Yes
Analog Outputs 類比輸出 : Active 4 - 20 mA max. 500 Ohm load, standard 1, max. 8 (option)
Digital Outputs 數位輸出 : Optional: Modbus (TCP/IP, RS485)
Certifications 認證 : CE compliant / ETL certified
Validation : Automatic; frequency freely programmable
另有, EZ4032 Sulfide Analyzer 機型 - Range : 20 - 1000 mg/L S2-
關鍵字 : 水質 硫化物 監測, 硫化物 濃度, 水中 硫化物 自動分析儀, 石化煉油 脫硫廢水 硫化物 監測, 水 硫離子 濃度 監測 儀器
