自動採水樣器 AS950 Portable Standard Sampler Bundle with 2.5 Gallon Bottle
產品編號：ASP.CXXXS121XX
自動採水樣再也簡單不過! AS950攜帶式水質採樣器的輕量化設計，低功率要求和易於移動之特色使其成為現場應用的理想選擇，包括應用於雨水，環境或工業預處理等。
AS950系列水質自動採樣器適用於定時等間隔等體積採樣及流量比列採樣；可滿足更高的採樣要求，如監測雨水-污水合流下水道的溢流，監測暴雨排水口，進行生物監測，或是進行水質研究等。
超大彩色顯示螢幕及直觀的操作界面，可同螢幕顯示操作選單內所有程序。AS950水質自動採樣器可利用USB上傳和下載數據。程序狀態螢幕可即時顯示報警情況及程序進展，快速排除故障。
AS950系列水質自動採樣器可程式編寫、數據傳輸及操作更加直觀。您可根據各式需求選購攜帶型, 冷藏型或全天候型。AS950攜帶型採樣器重量僅12.7公斤，可滿足精確採用及便攜需求。
The AS950 Portable Sampler simplifies sampling with a large, full-colour display for intuitive, single-screen programming, USB upload and download capabilities and the ability to copy programs sampler to sampler to save time on tedious programing, and an error alert and status screen to eliminate uncertainty and simplify troubleshooting. Weighing only 12.7 kg, the AS950 Portable Sampler is designed for accuracy and convenience.
Sample Volume : Programmable in 10 mL increments from 10 - 10,000 mL
Sample Volume Accuracy : Typical: ±5% of 200 mL sample volume with: 4.6 m (15 ft) vertical lift, 4.9 m (16 ft) of 3/8- in. vinyl intake tube, single bottle, full bottle shut-off at room temperature and 1524 m (5000 ft) elevation
Sample Volume Repeatability : Typical: ±5% of 200 mL sample volume with: 4.6 m (15 ft) vertical lift, 4.9 m (16 ft) of 3/8- in vinyl intake tube, single bottle, full bottle shut-off at room temperature and 1524 m (5000 ft) elevation
Display 螢幕顯示 : 1/4 VGA, Color; self-prompting/menu-driven program
Certifications : CE, UL
Communication Capabilities 通訊傳輸 : USB and optional RS485 (Modbus)
Data Logging 資料擷取和儲存 :
SAMPLE HISTORY - Stores up to 4000 entries for sample time stamp, bottle number and sample status (success, bottle full, rinse error, user abort, distributor error, pump fault, purge fail, sample timeout, power fail and low main battery).
MEASUREMENTS - Stores up to 325,000 entries for selected measurement channels in accordance with the selected logging interval.
EVENTS - Ability to store up to 2000 entries in Sample History logging. Records Power On, Power Fail, Firmware Updated, Pump Fault, Distributor Arm Error, Low Memory Battery, Low Main Battery, User On, User Off, Program Started, Program Resumed, Program Halted, Program Completed, Grab Sample, Tube Change Required, Sensor Communication Errors, Cooling Failed, Heating Failed, Thermal Error Corrected.
Factory Installed Options TWO SENSOR PORTS
Accepts Hach digital Differential pH, Hach digital AV9000 analyzer with submerged area velocity flow and/or Hach digital US9000 ultrasonic level sensors
|RAIN/RS485 PORT
Accepts Hach Rain Gauge (not included) or can be used as RS485 communications
|NON-CONTACT LIQUID DETECT
Sample volume accuracy for applications that require complete tubing replacement
Memory :
Sample history: 4000 records;
Data log: 325,000 records;
Event log: 2000 records
Operating Mode Continuous or non-continuous
關鍵字 : 自動採水設備, 水採樣, 自動採集水樣
AS950系列水質自動採樣器適用於定時等間隔等體積採樣及流量比列採樣；可滿足更高的採樣要求，如監測雨水-污水合流下水道的溢流，監測暴雨排水口，進行生物監測，或是進行水質研究等。
超大彩色顯示螢幕及直觀的操作界面，可同螢幕顯示操作選單內所有程序。AS950水質自動採樣器可利用USB上傳和下載數據。程序狀態螢幕可即時顯示報警情況及程序進展，快速排除故障。
AS950系列水質自動採樣器可程式編寫、數據傳輸及操作更加直觀。您可根據各式需求選購攜帶型, 冷藏型或全天候型。AS950攜帶型採樣器重量僅12.7公斤，可滿足精確採用及便攜需求。
The AS950 Portable Sampler simplifies sampling with a large, full-colour display for intuitive, single-screen programming, USB upload and download capabilities and the ability to copy programs sampler to sampler to save time on tedious programing, and an error alert and status screen to eliminate uncertainty and simplify troubleshooting. Weighing only 12.7 kg, the AS950 Portable Sampler is designed for accuracy and convenience.
Sample Volume : Programmable in 10 mL increments from 10 - 10,000 mL
Sample Volume Accuracy : Typical: ±5% of 200 mL sample volume with: 4.6 m (15 ft) vertical lift, 4.9 m (16 ft) of 3/8- in. vinyl intake tube, single bottle, full bottle shut-off at room temperature and 1524 m (5000 ft) elevation
Sample Volume Repeatability : Typical: ±5% of 200 mL sample volume with: 4.6 m (15 ft) vertical lift, 4.9 m (16 ft) of 3/8- in vinyl intake tube, single bottle, full bottle shut-off at room temperature and 1524 m (5000 ft) elevation
Display 螢幕顯示 : 1/4 VGA, Color; self-prompting/menu-driven program
Certifications : CE, UL
Communication Capabilities 通訊傳輸 : USB and optional RS485 (Modbus)
Data Logging 資料擷取和儲存 :
SAMPLE HISTORY - Stores up to 4000 entries for sample time stamp, bottle number and sample status (success, bottle full, rinse error, user abort, distributor error, pump fault, purge fail, sample timeout, power fail and low main battery).
MEASUREMENTS - Stores up to 325,000 entries for selected measurement channels in accordance with the selected logging interval.
EVENTS - Ability to store up to 2000 entries in Sample History logging. Records Power On, Power Fail, Firmware Updated, Pump Fault, Distributor Arm Error, Low Memory Battery, Low Main Battery, User On, User Off, Program Started, Program Resumed, Program Halted, Program Completed, Grab Sample, Tube Change Required, Sensor Communication Errors, Cooling Failed, Heating Failed, Thermal Error Corrected.
Factory Installed Options TWO SENSOR PORTS
Accepts Hach digital Differential pH, Hach digital AV9000 analyzer with submerged area velocity flow and/or Hach digital US9000 ultrasonic level sensors
|RAIN/RS485 PORT
Accepts Hach Rain Gauge (not included) or can be used as RS485 communications
|NON-CONTACT LIQUID DETECT
Sample volume accuracy for applications that require complete tubing replacement
Memory :
Sample history: 4000 records;
Data log: 325,000 records;
Event log: 2000 records
Operating Mode Continuous or non-continuous
關鍵字 : 自動採水設備, 水採樣, 自動採集水樣
Easiest and most intuitive operation 最簡單、最直覺式的使用者介面設計
The large full colour display and intuitive programming give you access to all your programmable criteria on a single screen - eliminating scrolling through menus and supporting error-free operation. 大型彩色顯示螢幕和直覺式的介面讓您在單一螢幕上即可存取所有可編輯程式標準 - 無需滾動選單且支援無錯誤操作。
Most convenient data transfer and programming available 最方便的數據傳輸和程式編輯
The AS950 is the only sampler that utilises a USB drive to upload and download data and copy programs from one sampler to another.
Confidence in your sampling process 讓您對採樣程序感到放心
The program status screen instantly communicates alarms, missed samples and program progress for quick and easy troubleshooting. 程序狀態畫面可即時傳達警示、錯過的樣品和程序進度，以便快速輕鬆地進行故障排除
The program status screen instantly communicates alarms, missed samples and program progress for quick and easy troubleshooting. 程序狀態畫面可即時傳達警示、錯過的樣品和程序進度，以便快速輕鬆地進行故障排除
Field convertible for compact or discrete sampling

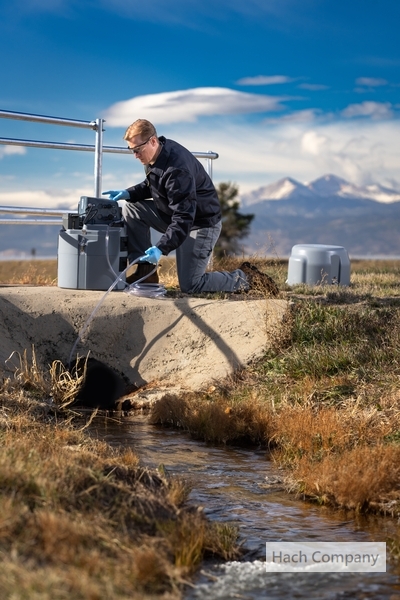

Weighing only 12.7 kg, the AS950 portable sampler is designed for accuracy and convenience. Quickly switch between composite and discrete sampling in the field. Configurable for single or multiple bottle applications, it is specifically designed for use in 18-inch manholes. AS950 攜帶式水質自動採樣器重量僅 12.7 公斤，專為精確和方便而設計。在現場快速切換複合採樣和離散採樣。它可配置用於單瓶或多瓶應用，專為 18 英寸人孔使用而設計
Weighing only 12.7 kg, the AS950 portable sampler is designed for accuracy and convenience. Quickly switch between composite and discrete sampling in the field. Configurable for single or multiple bottle applications, it is specifically designed for use in 18-inch manholes. AS950 攜帶式水質自動採樣器重量僅 12.7 公斤，專為精確和方便而設計。在現場快速切換複合採樣和離散採樣。它可配置用於單瓶或多瓶應用，專為 18 英寸人孔使用而設計
Easy maintenance at low cost 維護方便、成本低
Spring-mounted rollers provide long tubing life keeping maintenance costs low. The desiccant and pump tubing can easily be accessed; the replacement is possible without any tools. The rugged see-through pump cover is made for a quick visual inspection.
Spring-mounted rollers provide long tubing life keeping maintenance costs low. The desiccant and pump tubing can easily be accessed; the replacement is possible without any tools. The rugged see-through pump cover is made for a quick visual inspection.
