高精密度水中濁度和懸浮固體感測器(鈦材質) TSS TITANIUM7 sc Turbidity and Suspended Solids Immersion Probe, Titanium (media with high salt concentration)
產品編號：LXV330.99.10002
TSS TITANIUM7 sc 高精密型水中濁度和懸浮物數位感測器 (沉浸式探頭) 專門為海水和強鹽介質應用設計。一台儀器同時測量水中濁度和懸浮固體 Turbidity and suspended solids Immersion probe specially designed for use in seawater and strongly saline media
The TSS Titanium7 sc is a digital process probe for the extremely accurate measurement of turbidity and suspended solids specially designed for use in seawater and strongly saline media. This immersion probe is installed by tank-side mounting and can measure both on-line suspended solids and turbidity in one instrument. The two channel 90° scattered light turbidity method is in accordance with DIN EN ISO 7027. For the determination of suspended solids a scattered light measurement method at 120 ° is integrated. This eight channel measurement system, with an integrated bubble and temperature compensating software, enables the instrument to have a wide measuring range. The TSS Titanium7 sc probes are compatible with the Hach SC200 and SC1000 controller platform. Furthermore, they are made of titanium with a scratch resistant and easy to clean sapphire window design to withstand harsh environments. 雙通道 90° 散射光濁度法符合 DIN EN ISO 7027。為測定懸浮固體，整合 120° 散射光測量方法。 此款整合氣泡和溫度補償軟體的八通道測量系統讓儀器具備寬廣的量測範圍。 TSS Titanium7 sc 感測器與 Hach SC系列控制器相容。 材質由鈦製成，防刮擦且容易清潔的藍寶石窗口設計，可承受嚴苛環境應用。
Application 應用 : Media with high salt concentration 高鹽濃度介質
Range 量測範圍 :
Turbidity (TRB): 0.001 - 9999 NTU
Solids (TSS): 0.001 - 500 g/L
Accuracy 精確度 :
Turbidity up to 1000 NTU:
< 5% of the measured value ±0.01 NTU
*使用Hach SC系列 digital controllers 數位水質控制主機進行監控
關鍵字 : 海水 濁度 懸浮固體 分析儀, 海水 懸浮固體 監測儀器, 高鹽濃度 濁度 懸浮固體 監測儀, 高鹽 水 懸浮物 分析儀, Suspended Solids Analyzer, salinity sensor, salinity analyzer
The TSS Titanium7 sc is a digital process probe for the extremely accurate measurement of turbidity and suspended solids specially designed for use in seawater and strongly saline media. This immersion probe is installed by tank-side mounting and can measure both on-line suspended solids and turbidity in one instrument. The two channel 90° scattered light turbidity method is in accordance with DIN EN ISO 7027. For the determination of suspended solids a scattered light measurement method at 120 ° is integrated. This eight channel measurement system, with an integrated bubble and temperature compensating software, enables the instrument to have a wide measuring range. The TSS Titanium7 sc probes are compatible with the Hach SC200 and SC1000 controller platform. Furthermore, they are made of titanium with a scratch resistant and easy to clean sapphire window design to withstand harsh environments. 雙通道 90° 散射光濁度法符合 DIN EN ISO 7027。為測定懸浮固體，整合 120° 散射光測量方法。 此款整合氣泡和溫度補償軟體的八通道測量系統讓儀器具備寬廣的量測範圍。 TSS Titanium7 sc 感測器與 Hach SC系列控制器相容。 材質由鈦製成，防刮擦且容易清潔的藍寶石窗口設計，可承受嚴苛環境應用。
Application 應用 : Media with high salt concentration 高鹽濃度介質
Range 量測範圍 :
Turbidity (TRB): 0.001 - 9999 NTU
Solids (TSS): 0.001 - 500 g/L
Accuracy 精確度 :
Turbidity up to 1000 NTU:
< 5% of the measured value ±0.01 NTU
*使用Hach SC系列 digital controllers 數位水質控制主機進行監控
關鍵字 : 海水 濁度 懸浮固體 分析儀, 海水 懸浮固體 監測儀器, 高鹽濃度 濁度 懸浮固體 監測儀, 高鹽 水 懸浮物 分析儀, Suspended Solids Analyzer, salinity sensor, salinity analyzer
Unique Multi-Beam Pulsed Infrared Light System
TSS Titanium7 sc probes have a double optical system with two pulsating infrared LEDs and four receivers. This combined multiple beam alternating light method with beam focusing facilitates accurate color independent measurement of turbidity and suspended solids.
TSS Titanium7 sc probes have a double optical system with two pulsating infrared LEDs and four receivers. This combined multiple beam alternating light method with beam focusing facilitates accurate color independent measurement of turbidity and suspended solids.
Automatic Compensation for Air Bubbles and Temperature Swings for Accuracy
Special software enables the system to recognize gas bubbles or temperature swings for a more accurate suspended solids or turbidity measurement.
Special software enables the system to recognize gas bubbles or temperature swings for a more accurate suspended solids or turbidity measurement.
Standard Compliant and Precise - Ease of Calibration
The turbidity measurement complies with the standard DIN EN 27027 (ISO 7027). Calibration is not necessary. If the probe is used to measure the solids content, a one-point calibration suffices. For special applications, curves can be defined using several calibration points.
Titanium Probe Designed for the Most Difficult Environments
While offering the same high quality measuring properties, its special titanium body enables it to perform in seawater and strongly saline media.
While offering the same high quality measuring properties, its special titanium body enables it to perform in seawater and strongly saline media.
Compatible with Hach SC controller platform

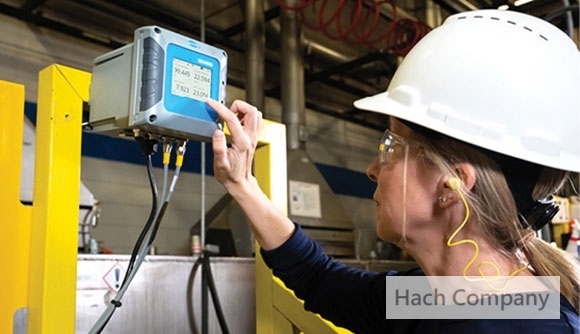

Measurement data is displayed and processed with the help of a digital Hach SC200 or SC1000 controller.
Measurement data is displayed and processed with the help of a digital Hach SC200 or SC1000 controller.
Two parameters in one instrument--Suspended Solids and Turbidity
