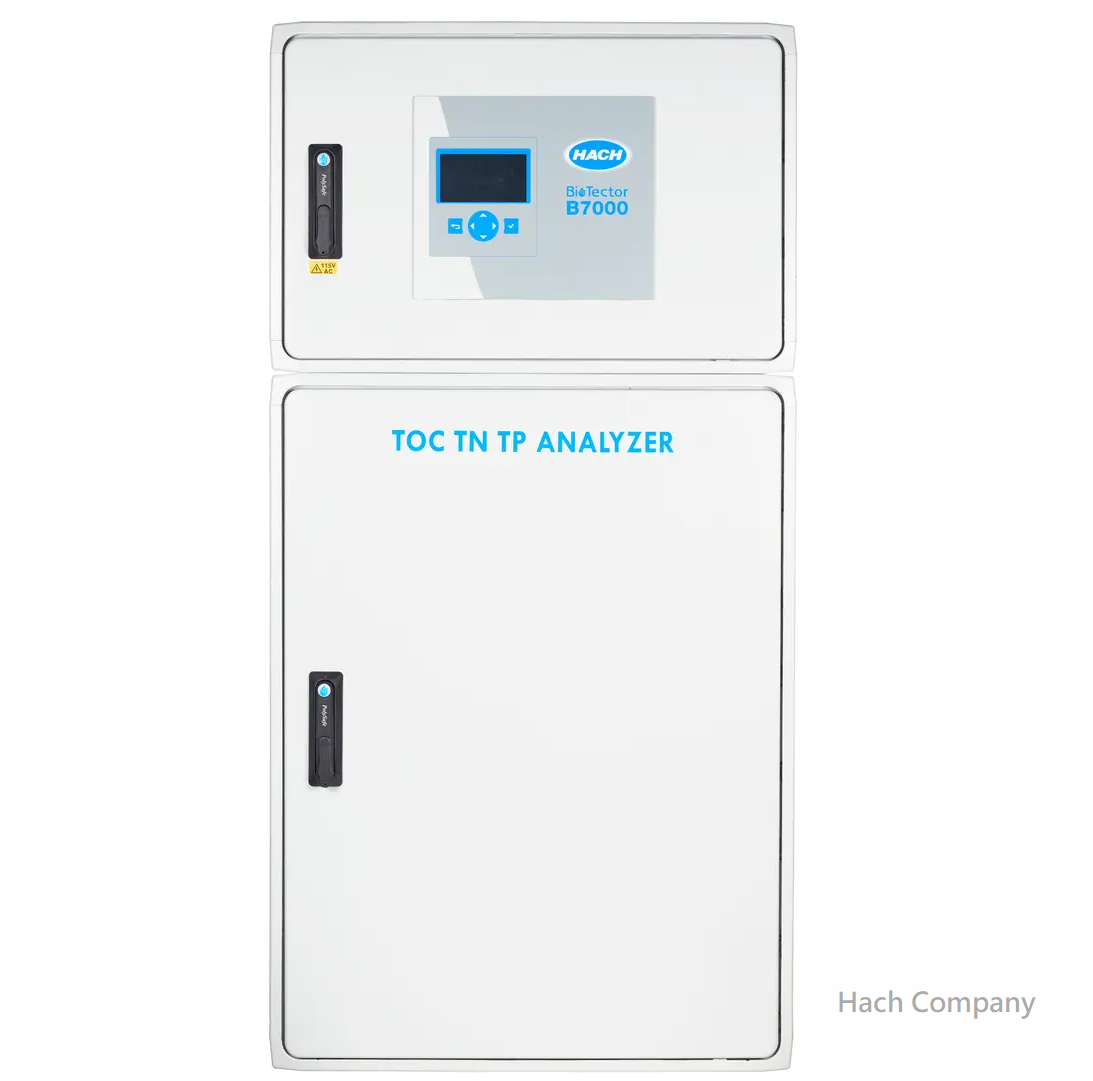

水中總有機碳/總氮/總磷分析儀 Hach BioTector B7000 TOC/TN/TP Analyer
產品編號:
A single analyzer for Carbon contamination and Nitrogen/Phosphorous nutrient levels in water 一台分析儀即可自動分析水中碳污染和氮/磷濃度
Contamination levels in water impact treatment and re-use decisions. With data on contamination plus nutrient levels water managers can make the most efficient and cost-effective decisions for treatment and reuse of important water supplies.
• Improve treatment and re-use decisions with accurate and complete water quality 透過準確和完整的水質分析數據以提升水處理,進而提供關鍵數據供水再生決策
• Reduce costs on nutrient dosing while protecting critical treatment facilities with accurate C:N:P ratios 減少投藥成本,同時以準確的 C:N:P 比率保護您重要的水處理設備
• Spend more time managing the plant and less time collecting data with a robust, industrially designed online analyzer to monitor TOC, TN, and TP parameters B7000分析儀即時監控 TOC、TN 和 TP 參數,大幅減少收集水質數據的時間,讓您能夠將時間聚焦於污水處理廠的優化管理
• Detect product loss quickly to save valuable product, and minimize risk of noncompliance by preventing excessive contamination releases to the wastewater treatment plant
The Hach TOC analyzer completes a full breakdown of each process sample to deliver trusted results.
- Improve wastewater treatment process 改善廢水處理程序
- Reduce the environmental footprint 減少環境足跡
- Protect your WWTP and WWRP 保護您的廢污水處理場設備和廢污水再生廠
- Superior reliability 卓越的可靠度
量測範圍 Range :
0 - 25 mg/L C/N/P;
0 - 50 mg/L C/N/P;
0 - 100 mg/L C/N/P;
0 - 500 mg/L C/N/P;
0 - 1000 mg/L C/N/P;
0 - 10000 mg/L C/N/P
關鍵字: 水 總有機碳 連續監測, Total Nitrogen, Total Phosphorous, 總氮, 總磷, 線上 總有機碳 即時監測 儀, online TOC, TN, TP analyzer, 廢水 TOC monitoring
Contamination levels in water impact treatment and re-use decisions. With data on contamination plus nutrient levels water managers can make the most efficient and cost-effective decisions for treatment and reuse of important water supplies.
• Improve treatment and re-use decisions with accurate and complete water quality 透過準確和完整的水質分析數據以提升水處理,進而提供關鍵數據供水再生決策
• Reduce costs on nutrient dosing while protecting critical treatment facilities with accurate C:N:P ratios 減少投藥成本,同時以準確的 C:N:P 比率保護您重要的水處理設備
• Spend more time managing the plant and less time collecting data with a robust, industrially designed online analyzer to monitor TOC, TN, and TP parameters B7000分析儀即時監控 TOC、TN 和 TP 參數,大幅減少收集水質數據的時間,讓您能夠將時間聚焦於污水處理廠的優化管理
• Detect product loss quickly to save valuable product, and minimize risk of noncompliance by preventing excessive contamination releases to the wastewater treatment plant
The Hach TOC analyzer completes a full breakdown of each process sample to deliver trusted results.
- Improve wastewater treatment process 改善廢水處理程序
- Reduce the environmental footprint 減少環境足跡
- Protect your WWTP and WWRP 保護您的廢污水處理場設備和廢污水再生廠
- Superior reliability 卓越的可靠度
量測範圍 Range :
0 - 25 mg/L C/N/P;
0 - 50 mg/L C/N/P;
0 - 100 mg/L C/N/P;
0 - 500 mg/L C/N/P;
0 - 1000 mg/L C/N/P;
0 - 10000 mg/L C/N/P
關鍵字: 水 總有機碳 連續監測, Total Nitrogen, Total Phosphorous, 總氮, 總磷, 線上 總有機碳 即時監測 儀, online TOC, TN, TP analyzer, 廢水 TOC monitoring
Improve wastewater treatment process
Capture changes in water quality with a direct analysis of Total Organic Carbon (contamination), Total Nitrogen and Total Phosphorus in the most challenging samples.
Capture changes in water quality with a direct analysis of Total Organic Carbon (contamination), Total Nitrogen and Total Phosphorus in the most challenging samples.
Reduce the environmental footprint
Comprehensive information about your incoming sample composition enables improved process control. Knowing TOC + TN and TP allows you to decrease utilities usage and related costs. Optimized processes will reduce effluent environmental impact and minimize the risks of fines and reputation damage.
Comprehensive information about your incoming sample composition enables improved process control. Knowing TOC + TN and TP allows you to decrease utilities usage and related costs. Optimized processes will reduce effluent environmental impact and minimize the risks of fines and reputation damage.
Protect your WWTP and WWRP
TOC is commonly used as a fast, reliable water analysis metric for water quality. TOC levels are often correlated to lagging water quality metrics such as Chemical Oxygen Demand (COD) and Biochemical Oxygen Demand (BOD).
TOC is commonly used as a fast, reliable water analysis metric for water quality. TOC levels are often correlated to lagging water quality metrics such as Chemical Oxygen Demand (COD) and Biochemical Oxygen Demand (BOD).
Superior reliability
With a certified 99.86% uptime critical process information is available when you need it most. Maintenance in most applications is done 2x per year.
With a certified 99.86% uptime critical process information is available when you need it most. Maintenance in most applications is done 2x per year.
Part Number
|
Range
|
Multi-Stream
|
Parameter
|
---|---|---|---|
B4QDDF052AECAE2 | 0 - 25 mg/L C/N/P |
Valves for up to 3 streams with up to six 4-20 mA signals The number of available outputs depends on the manual stream configuration. |
Direct measurement of TOC, TIC, TC, TN, TP; COD, BOD via correlation; VOC via calculation |
B4QGDF052AECAE2 | 0 - 500 mg/L C/N/P |
Valves for up to 3 streams with up to six 4-20 mA signals The number of available outputs depends on the manual stream configuration. |
Direct measurement of TOC, TIC, TC, TN, TP; COD, BOD via correlation; VOC via calculation |
B4QEDF052AECAE2 | 0 - 50 mg/L C/N/P |
Valves for up to 3 streams with up to six 4-20 mA signals The number of available outputs depends on the manual stream configuration. |
Direct measurement of TOC, TIC, TC, TN, TP; COD, BOD via correlation; VOC via calculation |
B4QFDF052AECAE2 | 0 - 100 mg/L C/N/P |
Valves for up to 3 streams with up to six 4-20 mA signals The number of available outputs depends on the manual stream configuration. |
Direct measurement of TOC, TIC, TC, TN, TP; COD, BOD via correlation; VOC via calculation |
B4QHDF052AECAE2 | 0 - 1000 mg/L C/N/P |
Valves for up to 3 streams with up to six 4-20 mA signals The number of available outputs depends on the manual stream configuration. |
Direct measurement of TOC, TIC, TC, TN, TP; COD, BOD via correlation; VOC via calculation |
B4QKDF052AECAE2 | 0 - 10000 mg/L C/N/P |
Valves for up to 3 streams with up to six 4-20 mA signals The number of available outputs depends on the manual stream configuration. |
Direct measurement of TOC, TIC, TC, TN, TP; COD, BOD via correlation; VOC via calculation |
Application Notes | Language | Size | Date | Edition |
---|---|---|---|---|
Industrial Discharge Monitoring before Inlet to the Municipal WWTP DOC043.52.30250 |
English UK | 230 KB | 2016-10 | Oct16 |
Steinbeis decides for TOC monitoring withHach BioTector B7000i DOC043.52.30639 |
English UK | 697 KB | 2020-09 | Jul20 |
Steinbeis decides for TOC monitoring withHach BioTector B7000i DOC043.53.30639 |
English US | 710 KB | 2020-09 | Jul20 |
Brochures | Language | Size | Date | Edition |
---|---|---|---|---|
Combine the organic detection power of BioTector with the sampling ease of the Venturi Sampler. DOC063.53.30579 |
English US | 1 MB | 2019-07 | Jul19 |
Case Studies | Language | Size | Date | Edition |
---|---|---|---|---|
C:N:P Optimisation with TOC/TN/TP Monitoring + RTC by Hach DOC043.52.30635 |
English UK | 569 KB | 2020-10 | Jul20 |
C:N:P Optimization with TOC/TN/TP Monitoring + RTC by Hach DOC043.53.30635 |
English US | 522 KB | 2020-10 | Jul20 |
Case Study: Online TOC Monitoring with BioTector - Dow chooses an innovative oxidation technology to monitor TOC/TN online DOC043.52.30466 |
English UK, English US | 473 KB | 2019-06 | Apr19 |
Certificates | Language | Size | Date | Edition |
---|---|---|---|---|
BioTector Case Study: Oijen, The Netherlands DOC043.53.30428 |
English US | 825 KB | 2018-08 | Jun18 |
Data Sheets | Language | Size | Date | Edition |
---|---|---|---|---|
BioTector Venturi Vacuum Sampler DOC053.53.35314 |
English US | 343 KB | 2020-09 | Sep20 |
Hach BioTector B7000 Online TOC/TN/TP Analyzer DOC053.53.35008 |
English US | 863 KB | 2019-02 | Jan19 |
Engineering Tender | Language | Size | Date | Edition |
---|---|---|---|---|
B7000 TOC TN CSI Specifications MS Word Doc |
English US | 46 KB | 2019-02 | Feb19 |
B7000 TOC TN drawings Download .ZIP file and extract to your computer. File contains transmittals in format: .dwg .dxf .pdf |
English US | 6 MB | 2019-06 | |
B7000 TOC TN TP CSI Specifications MS Word Doc |
English US | 48 KB | 2019-02 | Feb19 |
B7000 TOC TN TP drawings Download .ZIP file and extract to your computer. File contains transmittals in format: .dwg .dxf .pdf |
English US | 5 MB | 2019-06 |
Manuals | Language | Size | Date | Edition |
---|---|---|---|---|
Advanced Configuration Manual B7000 TOC TN TP Analyzer DOC023.52.90672 |
English UK | 283 KB | 2020-11 | Ed1 |
Advanced Configuration, BioTector B7000 Online TOC TN Analyzer DOC023.52.90684 |
English UK | 262 KB | 2020-11 | Ed1 |
Information Sheet, BioTector B7000 TOC TP Analyzer DOC333.52.90710 |
English UK | 107 KB | 2020-11 | Ed1 |
Installation and Operation Manual, BioTector B7000 TOC TN TP DOC023.52.90654 |
English UK | 8 MB | 2021-06 | Ed2 |
Installation and Operation, BioTector B7000 Online TOC TN Analyzer DOC023.52.90653 |
English UK | 8 MB | 2021-06 | Ed2 |
Maintenance and Troubleshooting Manual, BioTector B7000 TOC TN TP Analyzer DOC023.52.90673 |
English UK | 2 MB | 2020-11 | Ed1 |
