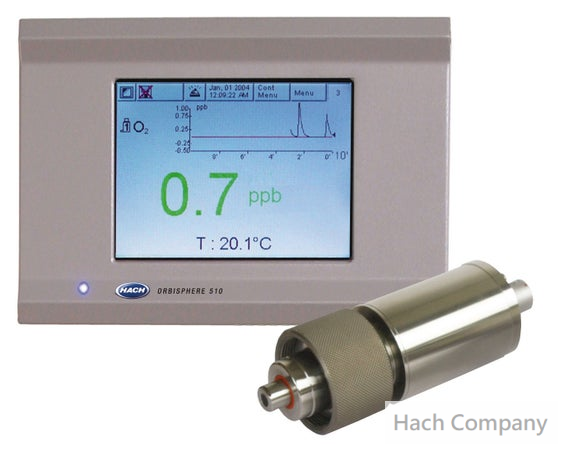

純水氫感測控制主機 Orbisphere 511 Controller H₂ (TC), Panel Mount, 100-240 VAC, 0/4-20mA, Profibus, Ext. Press.
產品編號：511F00/P1C1P000
Orbisphere 510 多通道控制主機提供精確、強大的製程監控功能。專門為電力能源、電子製造、生命科學、飲料、化學和水處理行業之應用而設計。
Precise, Powerful Process monitoring
The Orbisphere 510 Multi-Channel controller offers precise, powerful process monitoring capability.
Designed to complement the Orbisphere high quality sensors these instruments provide accurate, repeatable trace level measurements and an impressive level of data management.
Depending on the version, the Orbisphere 510 controller can be combined with up to 3 sensors among: 根據各個不同版本，Orbisphere 510 控制主機最多可與 3 個感測器連接使用：
• Orbisphere 311xx Oxygen Sensors
• Orbisphere A1100 Oxygen Sensors
• Orbisphere K1100/K1200 Oxygen Sensors
• Orbisphere M1100 Oxygen Sensor
• Orbisphere 314xx Carbon Dioxyde Sensors
• Orbisphere C1100 Ozone Sensors
• Orbisphere 312xx Hydrogen Sensors
• Orbisphere 315xx Nitrogen Sensors
These controllers are designed for applications in the power generation, electronics, life sciences, beverage, chemical and water treatment industries.
Do not hesitate to contact us to define the best configuration for your application.
- Easy to use, intuitive software using clear, full color touch-screen
- Internal diagnostics and reminders for maintenance and calibration
- Easy to use and reliable
- Multiple communication options including USB and Profibus
- Data Storage
User Interface 使用介面 : Touch screen panel displays: concentration, trend graph, diagnostics, alarm status, historical data
Relays :
3 measurement alarm relays (2A to 30 VAC or 0.5 A to 50 VDC); configurable to send diagnostics information
1 system alarm relay (2 A to 30 VAC or 0.5 A to 50 VDC)
Compliance Certifications 合規認證 :
EMC: EN61326-1:2006
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
Units :
• Gas concentration: Configurable for gas or liquid phase with multiple unit options
• Pressure : External and barometric pressure with multiple unit options
• Temperature : Sample temperature with unit options (K, °C, °F)
關鍵字 : 純水 氫 感測控制主機, 純水 氫 監控, 純水 氫 線上分析
Precise, Powerful Process monitoring
The Orbisphere 510 Multi-Channel controller offers precise, powerful process monitoring capability.
Designed to complement the Orbisphere high quality sensors these instruments provide accurate, repeatable trace level measurements and an impressive level of data management.
Depending on the version, the Orbisphere 510 controller can be combined with up to 3 sensors among: 根據各個不同版本，Orbisphere 510 控制主機最多可與 3 個感測器連接使用：
• Orbisphere 311xx Oxygen Sensors
• Orbisphere A1100 Oxygen Sensors
• Orbisphere K1100/K1200 Oxygen Sensors
• Orbisphere M1100 Oxygen Sensor
• Orbisphere 314xx Carbon Dioxyde Sensors
• Orbisphere C1100 Ozone Sensors
• Orbisphere 312xx Hydrogen Sensors
• Orbisphere 315xx Nitrogen Sensors
These controllers are designed for applications in the power generation, electronics, life sciences, beverage, chemical and water treatment industries.
Do not hesitate to contact us to define the best configuration for your application.
- Easy to use, intuitive software using clear, full color touch-screen
- Internal diagnostics and reminders for maintenance and calibration
- Easy to use and reliable
- Multiple communication options including USB and Profibus
- Data Storage
User Interface 使用介面 : Touch screen panel displays: concentration, trend graph, diagnostics, alarm status, historical data
Relays :
3 measurement alarm relays (2A to 30 VAC or 0.5 A to 50 VDC); configurable to send diagnostics information
1 system alarm relay (2 A to 30 VAC or 0.5 A to 50 VDC)
Compliance Certifications 合規認證 :
EMC: EN61326-1:2006
CE: EN61010-1:2010
ETL, conforming to UL 61010-1 and CSA 22.2 No. 61010-1
Units :
• Gas concentration: Configurable for gas or liquid phase with multiple unit options
• Pressure : External and barometric pressure with multiple unit options
• Temperature : Sample temperature with unit options (K, °C, °F)
關鍵字 : 純水 氫 感測控制主機, 純水 氫 監控, 純水 氫 線上分析
Easy to use, intuitive software using clear, full color touch-screen
容易使用、直覺式操作的軟體設計，清晰的彩色觸控式螢幕
All functions of Orbisphere 510 instruments are accessed through the color, touch screen.This screen acts as display and keyboard.
All functions of Orbisphere 510 instruments are accessed through the color, touch screen.This screen acts as display and keyboard.
Internal diagnostics and reminders for maintenance and calibration
內部診斷和提醒維護和校正
To ensure continuous high performance and simplify maintenance, Orbisphere 510 instruments offer a number of diagnostic features.
Notification that calibration is due—ensures QC procedural compliance
Notification that a sensor service is due—optimal preventative maintenance planning
Sensor service diagnostics—minimizes downtime
System alarms transmitted through analog output—continuous status indication
To ensure continuous high performance and simplify maintenance, Orbisphere 510 instruments offer a number of diagnostic features.
Notification that calibration is due—ensures QC procedural compliance
Notification that a sensor service is due—optimal preventative maintenance planning
Sensor service diagnostics—minimizes downtime
System alarms transmitted through analog output—continuous status indication
Easy to use and reliable 使用簡單且可靠
Orbisphere 510 instruments are designed for ease of use. After simple installation, the system is measuring your process in minutes. Simple menus allow you to rapidly create a specific configuration for the instrument. The main measurement window continuously displays real time process readings, graphed sensor trends (user selectable from last 1 minute to last 1 hour), alarm limits, temperature and event occurrence. 簡單安裝後，系統可在幾分鐘內測量。選單讓使用者快速建立儀器的特定配置。主測量視窗連續顯示即時數值、感測器趨勢圖（可選過去的1 分鐘到過去的 1 小時）、警示限值、溫度和事件。
Orbisphere 510 instruments are designed for ease of use. After simple installation, the system is measuring your process in minutes. Simple menus allow you to rapidly create a specific configuration for the instrument. The main measurement window continuously displays real time process readings, graphed sensor trends (user selectable from last 1 minute to last 1 hour), alarm limits, temperature and event occurrence. 簡單安裝後，系統可在幾分鐘內測量。選單讓使用者快速建立儀器的特定配置。主測量視窗連續顯示即時數值、感測器趨勢圖（可選過去的1 分鐘到過去的 1 小時）、警示限值、溫度和事件。
Multiple communication options including USB and Profibus 多種通訊選項
Digital communication uses industry standard protocols including Profibus and USB in addition to traditional analog outputs and alarm relays. These may all be configured in terms of function, content and behavior.
Digital communication uses industry standard protocols including Profibus and USB in addition to traditional analog outputs and alarm relays. These may all be configured in terms of function, content and behavior.
Data Storage 數據儲存
Data storage of up to 10000 measurements, last 1000 operator actions and details of last 50 calibrations 最多 10000 次測量的數據儲存、最近 1000 次操作人員操作以及最近 50 次校正的詳細信息
Data storage of up to 10000 measurements, last 1000 operator actions and details of last 50 calibrations 最多 10000 次測量的數據儲存、最近 1000 次操作人員操作以及最近 50 次校正的詳細信息
