水中導電度線上感測器 Contacting Conductivity Digital Sensor, Compression Style, 10 Cell Constant
產品編號：D3422E3
Ultimate accuracy from ultra-pure to high conductivity applications. 從超純水到高導電度應用的極精確監測
Insertion Style, Nominal Cell Constant (K) = 10.0, 3/4 inch NPT PVDF Compression Fitting, 7m (23 ft) Digital Cable, Titanium Electrode
Cell Constant k : 10 cm-1
Electrode Material : Titanium
Flow : 0 - 3 m/s (0–10 ft./s), maximum, fully immersed
Operating Temperature Range : -20 - 200 °C
Pressure Range : 0 - 300 psi (20.7 BAR)
Range : 0 - 200000 µS/cm
Repeatability : ± 0.5 of reading
Response Time : 90 % of reading within 30 seconds of step change
Accuracy : ± 2 % of reading above 200 µS/cm
Temperature Compensation : Temperature Compensator: Pt 1000 RTD
關鍵字 : 純水 導電度 線上監測儀, 純水 導電度 分析儀
Insertion Style, Nominal Cell Constant (K) = 10.0, 3/4 inch NPT PVDF Compression Fitting, 7m (23 ft) Digital Cable, Titanium Electrode
Cell Constant k : 10 cm-1
Electrode Material : Titanium
Flow : 0 - 3 m/s (0–10 ft./s), maximum, fully immersed
Operating Temperature Range : -20 - 200 °C
Pressure Range : 0 - 300 psi (20.7 BAR)
Range : 0 - 200000 µS/cm
Repeatability : ± 0.5 of reading
Response Time : 90 % of reading within 30 seconds of step change
Accuracy : ± 2 % of reading above 200 µS/cm
Temperature Compensation : Temperature Compensator: Pt 1000 RTD
關鍵字 : 純水 導電度 線上監測儀, 純水 導電度 分析儀
High Performance Design 高效能設計
These enhanced performance sensors are manufactured to exacting tolerances using high quality, rugged materials for demanding applications including ultra-pure water, clean-in-place (CIP), and boiler/condensate monitoring. Each sensor is tested to determine its unique, absolute four-digit cell constant. Also, each sensor has a Pt 1000 RTD temperature element built into its tip for exceptionally fast response to changes in temperature with ±0.1ºC accuracy. 超純水、就地清洗 (CIP) 和鍋爐水/冷凝水監測
These enhanced performance sensors are manufactured to exacting tolerances using high quality, rugged materials for demanding applications including ultra-pure water, clean-in-place (CIP), and boiler/condensate monitoring. Each sensor is tested to determine its unique, absolute four-digit cell constant. Also, each sensor has a Pt 1000 RTD temperature element built into its tip for exceptionally fast response to changes in temperature with ±0.1ºC accuracy. 超純水、就地清洗 (CIP) 和鍋爐水/冷凝水監測
Resistivity and Conductivity Measurement Capability 電阻和導電度量測能力
These enhanced performance sensors measure from theoretically pure water (0.057 µS/cm or 18.2 MΩ) up to 200,000 µS/cm. Hach’s sc Digital Controllers accept multiple digital sensor inputs, and can be user-set to measure conductivity, resistivity,TDS, salinity, or one of six calculated measurements.
These enhanced performance sensors measure from theoretically pure water (0.057 µS/cm or 18.2 MΩ) up to 200,000 µS/cm. Hach’s sc Digital Controllers accept multiple digital sensor inputs, and can be user-set to measure conductivity, resistivity,TDS, salinity, or one of six calculated measurements.
Versatile Mounting Styles 多種安裝方式
Compression fitting sensors feature titanium electrodes and a compression fitting for universal installation with up to 4 inches (102 mm) insertion depth. The 1/2-inch or 3/4-inch male NPT compression fittings are offered in PVDF or 316 stainless steel. A longer version of this sensor is available for use with a 316 stainless steel ball valve hardware assembly to insert/retract the sensor from the process without stopping the flow. The longer version can also be used for insertion through a compression fitting. Maximum insertion depth is 7 inches (178 mm).
Compression fitting sensors feature titanium electrodes and a compression fitting for universal installation with up to 4 inches (102 mm) insertion depth. The 1/2-inch or 3/4-inch male NPT compression fittings are offered in PVDF or 316 stainless steel. A longer version of this sensor is available for use with a 316 stainless steel ball valve hardware assembly to insert/retract the sensor from the process without stopping the flow. The longer version can also be used for insertion through a compression fitting. Maximum insertion depth is 7 inches (178 mm).

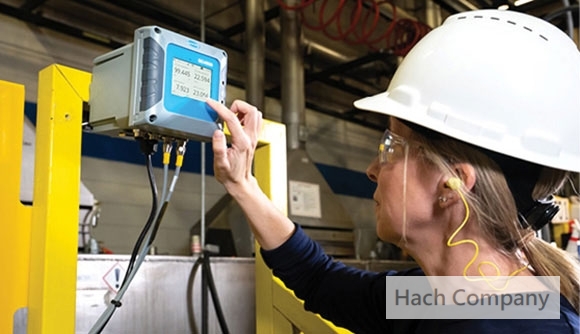

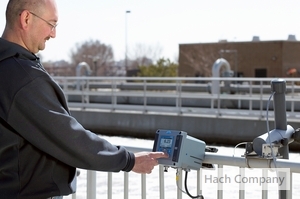

Full Featured “Plug and Play” with Digital SC Controller 相容於Hach SC系列數位監測主機
There are no complicated wiring or set up procedures with any Hach SC controller. Just plug in any combination of Hach digital sensors and it's ready to use—it’s “plug and play.”
There are no complicated wiring or set up procedures with any Hach SC controller. Just plug in any combination of Hach digital sensors and it's ready to use—it’s “plug and play.”
