Kipp & Zonen SMP系列 Pyranometers 智慧型天空輻射計
產品編號：
Kipp & Zonen的SMP系列智能型天空輻射計，測量水平面上的太陽輻射。 當以與太陽能面板相同的角度傾斜時，它測量傾斜的整體輻射以計算太陽能模組的效率。
SMP系列維護成本低，具有符合產業標準的數位及模擬放大輸出。加配有微處理器、記憶體和固件，快速回應。
Modbus® 介面與RTU、PLC、SCADA系統、工業網路以及控制器等直接相連。
測量資料每秒左右更新，使用這可存取輻照度、類型、序號、儀器設定、完整校正歷史、狀態資訊以及其他各種資料。SMP系列日射總輻射計可在5~30 VDC電源範圍內運行，電源輸入設定有電極反接和過壓保護。
ISO 9060 spectrally flat Class A
應用於全球各地氣象和氣候網路中
為太陽能電站選址和產能預測提供可靠測量結果
型號 : SMP3, SMP6, SMP10, SMP11, SMP21, SMP22
SMP系列維護成本低，具有符合產業標準的數位及模擬放大輸出。加配有微處理器、記憶體和固件，快速回應。
Modbus® 介面與RTU、PLC、SCADA系統、工業網路以及控制器等直接相連。
測量資料每秒左右更新，使用這可存取輻照度、類型、序號、儀器設定、完整校正歷史、狀態資訊以及其他各種資料。SMP系列日射總輻射計可在5~30 VDC電源範圍內運行，電源輸入設定有電極反接和過壓保護。
ISO 9060 spectrally flat Class A
應用於全球各地氣象和氣候網路中
為太陽能電站選址和產能預測提供可靠測量結果
型號 : SMP3, SMP6, SMP10, SMP11, SMP21, SMP22

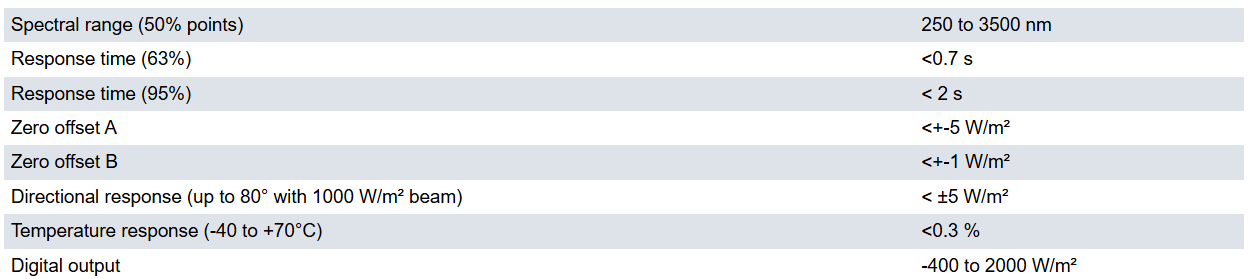

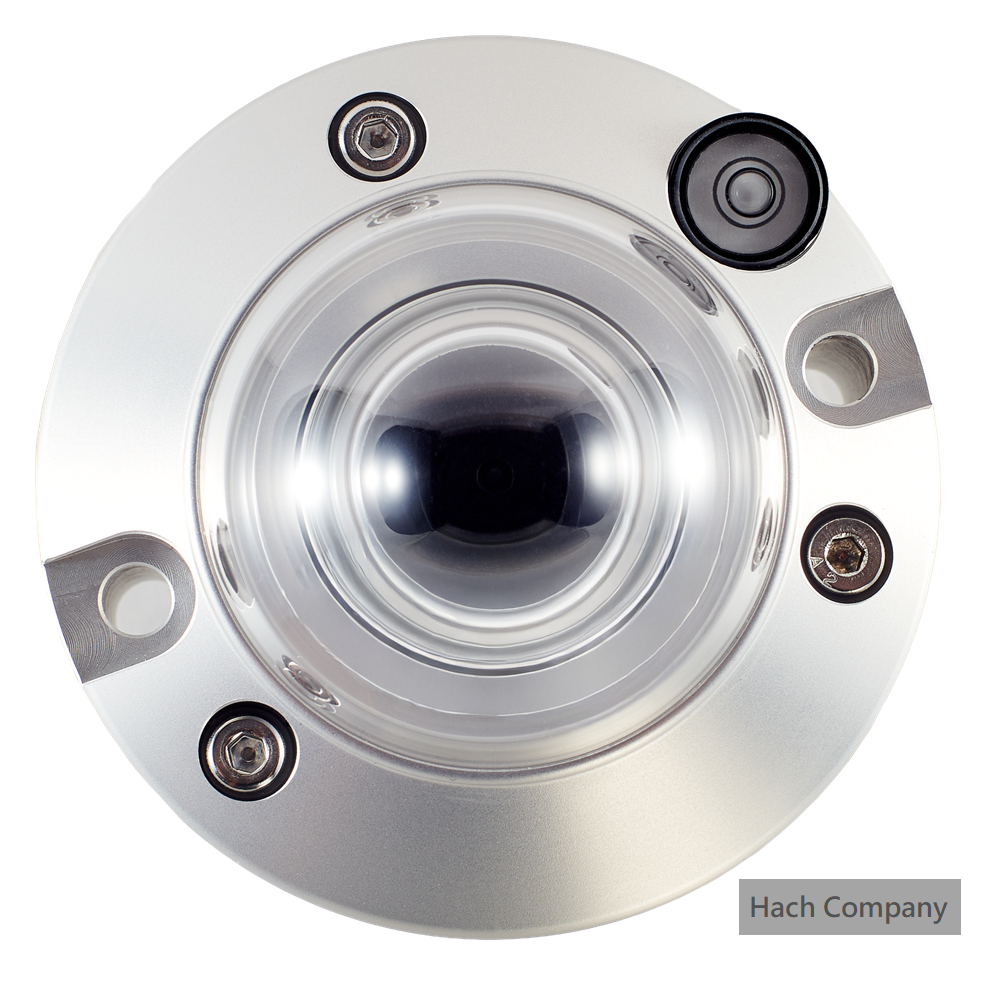

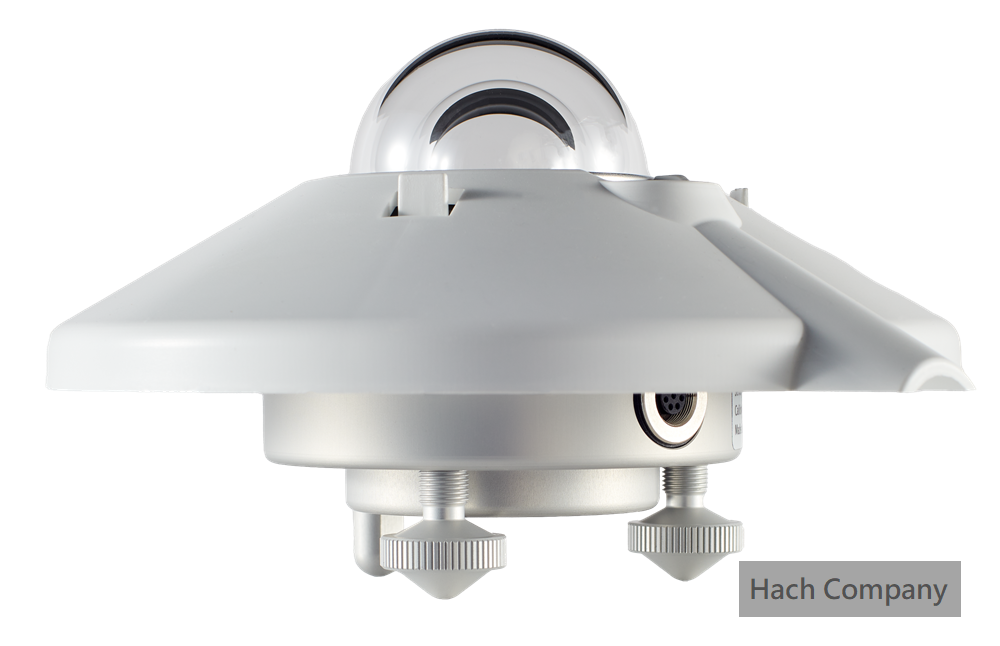

The SMP22 is a spectrally flat Class A pyranometer that combines the new smart interface with quartz domes and sensor technology from the CMP22. Which has a proven track record of decades, making it the most accurate and reliable pyranometer in the world. The SMP22 has the widest spectral range, improved directional response, and reduced thermal offsets. Because of the highest optical quality domes the directional error is reduced below 5 W/m2. The SMP22 comes standard with RS-485 Modbus® interface and 5 year warranty.
The SMP22 has internal desiccant that will last for at least 10 years. This minimizes maintenance significantly.
The interval for dome cleaning can be extended, and the quality of measurements maximized, by fitting SMP22 with the CVF4 ventilation unit.

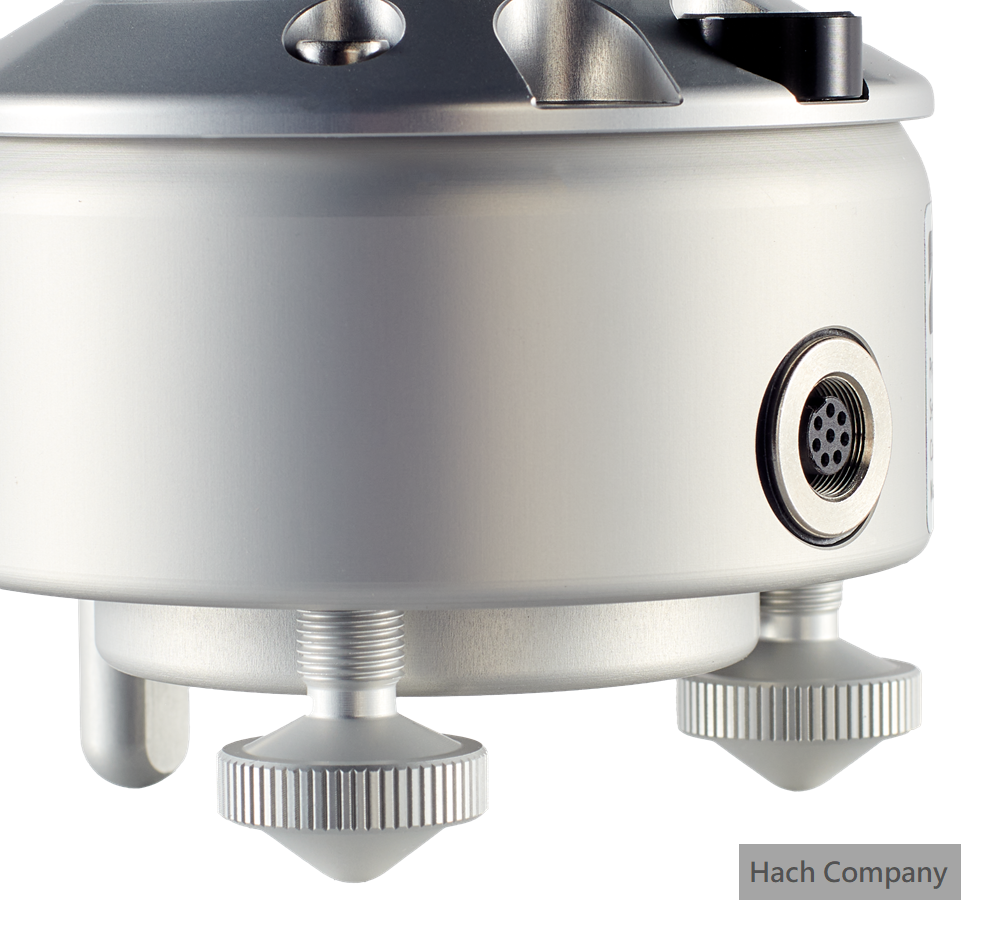

The SMP22 has a digital interface, amplified analogue output, improved response time and individual temperature corrected measurement data. The SMP22 is supplied with individual measured cosine response data. The wide and low power supply range from 5 to 30 VDC makes integration in meteorological and solar energy stations easy. The SMP22 is extreme robust and comes with 5 years warranty.
Thanks to standardized output and connections of every SMP22, exchanging instruments for recalibration is easy.
SmartExplorer Windows™ software for data logging, display of data and Modbus® address setting is provided as standard.
|
|
About Kipp & Zonen
Kipp & Zonen provides class-leading instruments for measuring solar radiation and atmospheric properties in Meteorology, Climatology, Hydrology, Industry, Renewable Energy, Agriculture and Public Health.
Kipp & Zonen is the specialist in the measurement of solar and sky radiation, from the ultraviolet to the far infrared. We offer a complete range of high quality instrumentation and accessories, from reliable cost-effective products to the best performance available. Our pyranometers, for example, are used in meteorological networks around the world.
Furthermore, our expertise and close links with the scientific community have led to high-end solutions for the measurement of atmospheric properties such as stratospheric Ozone, UV Spectra and evapotranspiration.
