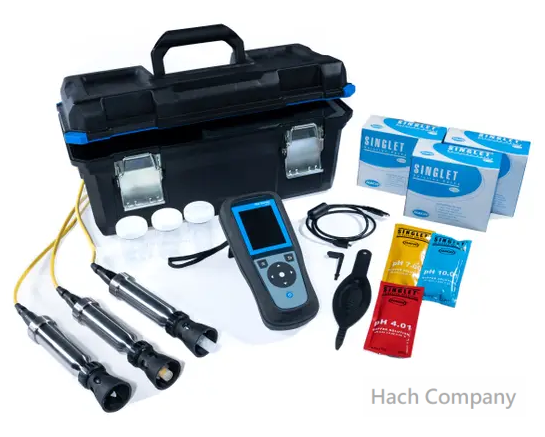

手持式水質分析儀(pH, 導電度, 溶氧) HQ4300 Portable Multi-Meter with Rugged Field Gel pH, Conductivity, and Dissolved Oxygen Electrode, 5 m Cables
產品編號：
一機在手, 讓您同時測量多種水質參數 : pH, 導電度, 溶氧
A robust and intuitive range of portable meters, instilling confidence in reporting and managing your results. HQ系列功能強大且智慧直覺式設計的手提式水質檢測儀表，測試數據和管理結果精確可靠。智慧型儀表簡化並加速現場使用者的完整測量流程。
The HQ Series is for water quality professionals who want to perform electrochemical analysis for field and lab environments. Our new portable platform will allow you to collect intuitive, accurate measurements, manage data, and easily review results, while supplying an IP67 robustness rating.
They provide a true rugged, field-ready solution with on-screen, visual step-by-step operating guidance that provides users with confidence in reporting and managing their results. Unlike other field meters with basic user interfaces and without easily accessible data, the HQ Series secures, simplifies, and accelerates the complete measurement process for field users.
Choose from 4 models, including the three-input HQ4000 series, dual-input HQ2000 series, and single-input HQ1000 series. These meters offer a range in measurement versatility - eliminating the need for multiple pieces of equipment. 有 4 種型號可供選擇，包括同時連接三支探頭 HQ4000 系列、二支探頭 HQ2000 系列和單探頭 HQ1000 系列。
Certifications 認證 : CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS
Data Export 數據輸出 : USB connection to PC or USB storage device (limited to the storage device capacity).
Data Memory 數據儲存 : 100,000 data points
Display Type 顯示螢幕 : 640x480 Color TFT
GLP Features : Date; Time; Sample ID; Operator ID, Calibration
DO Measurement Range : 0.1 - 20.0 mg/L (ppm), 1 - 200% saturation
pH Measurement Range : 0 - 14 pH
Temperature Compensation 溫度補償 : Automatic Temperature compensation for pH
Sensor A : PHC10105 酸鹼值分析探頭
Sensor B : CDC40105 導電度分析探頭
Sensor C : LDO10105 溶氧分析探頭
關鍵字 : 手提式 水中 pH計, 手提式 導電度計, 手持式 溶氧計, 水中 溶氧測定, 攜帶式 溶氧濃度 檢測儀, 手提式溶氧 檢測計, 手提式 DO計, pH meter, conductivity meter, DO meter, 多參數 水質計
A robust and intuitive range of portable meters, instilling confidence in reporting and managing your results. HQ系列功能強大且智慧直覺式設計的手提式水質檢測儀表，測試數據和管理結果精確可靠。智慧型儀表簡化並加速現場使用者的完整測量流程。
The HQ Series is for water quality professionals who want to perform electrochemical analysis for field and lab environments. Our new portable platform will allow you to collect intuitive, accurate measurements, manage data, and easily review results, while supplying an IP67 robustness rating.
They provide a true rugged, field-ready solution with on-screen, visual step-by-step operating guidance that provides users with confidence in reporting and managing their results. Unlike other field meters with basic user interfaces and without easily accessible data, the HQ Series secures, simplifies, and accelerates the complete measurement process for field users.
Choose from 4 models, including the three-input HQ4000 series, dual-input HQ2000 series, and single-input HQ1000 series. These meters offer a range in measurement versatility - eliminating the need for multiple pieces of equipment. 有 4 種型號可供選擇，包括同時連接三支探頭 HQ4000 系列、二支探頭 HQ2000 系列和單探頭 HQ1000 系列。
Certifications 認證 : CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS
Data Export 數據輸出 : USB connection to PC or USB storage device (limited to the storage device capacity).
Data Memory 數據儲存 : 100,000 data points
Display Type 顯示螢幕 : 640x480 Color TFT
GLP Features : Date; Time; Sample ID; Operator ID, Calibration
DO Measurement Range : 0.1 - 20.0 mg/L (ppm), 1 - 200% saturation
pH Measurement Range : 0 - 14 pH
Temperature Compensation 溫度補償 : Automatic Temperature compensation for pH
Sensor A : PHC10105 酸鹼值分析探頭
Sensor B : CDC40105 導電度分析探頭
Sensor C : LDO10105 溶氧分析探頭
關鍵字 : 手提式 水中 pH計, 手提式 導電度計, 手持式 溶氧計, 水中 溶氧測定, 攜帶式 溶氧濃度 檢測儀, 手提式溶氧 檢測計, 手提式 DO計, pH meter, conductivity meter, DO meter, 多參數 水質計
Performing a successful calibration has never been so simple
Most measuring issues are due to incorrect calibration procedures. With our illustrated, step-by-step on-screen calibration and troubleshooting procedures, water quality professionals can succeed every time.
Deliver your daily activity in just a few clicks
Whether you are at your facility or working in the field, the Hach® HQ Series portable meter ensures your data will be safely transferred via USB or optional Bluetooth*. Take advantage of additional data validation when you connect your field meter to Claros™ Data Management software.
Sensors designed for every application
We offer standard laboratory and rugged field Intellical™ smart sensors available with the HQ Series to measure a wide variety of parameters including Total Dissolved Solids (TDS), Optical Dissolved Oxygen (DO), Biochemical Oxygen Demand (BOD), Temperature, Conductivity, and pH. Intellical smart probes are automatically recognized by HQ meters, retain calibration history and method settings to minimize errors and setup time. They incorporate proven technology to deliver superior accuracy and response times – even when measuring challenging samples or challenging operating environments.
Peace of mind: Hach service and support will be there for you
Our Technical Support, Field Service, and Central Service Teams work together with over 80 years of electrochemistry expertise to help you maximize instrument uptime, ensure data integrity, maintain operational stability, and reduce compliance risk. Never feel alone when you need support.
| Brochures | Language | Size | Date | Edition |
|---|---|---|---|---|
|
HQ Series Service Overview Brochure DOC062.53.20315 |
English US | 377 KB | 2020-09 | Aug20 |
| Data Sheets | Language | Size | Date | Edition |
|---|---|---|---|---|
|
HQ Series Portable Meters DOC052.53.25026 |
English US | 774 KB | 2020-12 | Oct20 |
| Manuals | Language | Size | Date | Edition |
|---|---|---|---|---|
|
Basic User Manual: HQ1110, HQ1130, HQ1140, HQ2100, HQ2200, HQ4100, HQ4200, HQ4300 DOC022.97.80629 |
French, Spanish, Portuguese, Japanese, Korean, Thai, Chinese, English US | 2 MB | 2021-01 | Jun20 Ed1 |
|
User Manual HQ Series DOC022.53.80629 |
English UK, English US | 1 MB | 2020-10 | Aug20/Ed1 |
|
HQ™ Series Simulator 模擬試用HQ系列攜帶式水質分析儀
Test drive the HQ Series Meter and discover for yourself how easy the interface really is. Start by selecting your parameters. 進入模擬器頁面後, 選擇您的水質測試參數, 然後開始輕鬆體驗HQ系列儀表的友善人機界面。
  |
