純水溶解氮感測器 Orbisphere Nitrogen (N₂) TC sensor with carbon dioxide purge, protection cap, ext. temp. sensor (20 bar)
產品編號：31590TC
Selective gas measurement 選擇性氣體測量
Nitrogen TC sensor with carbon dioxide purge and protection cap. With external temperature sensor adapter.
Sensor cable to be ordered: 32505.03. Maximum pressure: 20 bar.
This sensor is the successor model for 31560 and 31550.
Application 應用 : In-line beverage 飲料純水, semiconductors industry 半導體
Parameter 分析參數 : Nitrogen (N₂)
Range 量測範圍 : Range at 25 °C 0 - 20 bar, or 0 - 350 ppm, or 0 - 300 mL/L
Cycle Time : 22 s 秒
Flow Rate 流速 : Typical Flow Rate 300 mL/min
Accuracy : (Sample temp. 20 - 50 °C within ± 5 °C of calibration temperature) The greater of ±2% of reading or ±15 mbar or ±0.3 ppm or ±0.25 mL/L
Accuracy 2 : (Sample temp. 0 - 50 °C independent of calibration temperature) The greater of ±4% of reading or ±34 mbar or ±1 ppm or ±0.8 mL/L
Protection Class : IP65
Certifications 認證 : 2004/108/EC - EN 61326-1

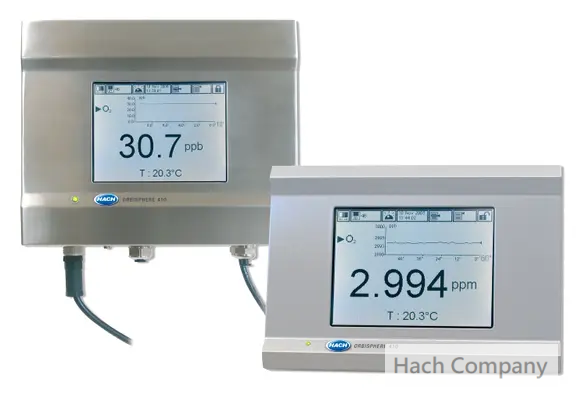

*使用Hach Orbisphere 510 Controllers 進行監控
關鍵字 : 純水 溶解氮 分析儀, 線上監測 純水 溶解氮, ultra pure water nitrogen analyzer
Nitrogen TC sensor with carbon dioxide purge and protection cap. With external temperature sensor adapter.
Sensor cable to be ordered: 32505.03. Maximum pressure: 20 bar.
This sensor is the successor model for 31560 and 31550.
Application 應用 : In-line beverage 飲料純水, semiconductors industry 半導體
Parameter 分析參數 : Nitrogen (N₂)
Range 量測範圍 : Range at 25 °C 0 - 20 bar, or 0 - 350 ppm, or 0 - 300 mL/L
Cycle Time : 22 s 秒
Flow Rate 流速 : Typical Flow Rate 300 mL/min
Accuracy : (Sample temp. 20 - 50 °C within ± 5 °C of calibration temperature) The greater of ±2% of reading or ±15 mbar or ±0.3 ppm or ±0.25 mL/L
Accuracy 2 : (Sample temp. 0 - 50 °C independent of calibration temperature) The greater of ±4% of reading or ±34 mbar or ±1 ppm or ±0.8 mL/L
Protection Class : IP65
Certifications 認證 : 2004/108/EC - EN 61326-1
*使用Hach Orbisphere 510 Controllers 進行監控
關鍵字 : 純水 溶解氮 分析儀, 線上監測 純水 溶解氮, ultra pure water nitrogen analyzer
Patented thermal conductivity (TC) sensor design 專利熱傳導感測器設計
No sample preparation needed, the gas concentration is measured directly in the sample 無需樣品製備，直接在樣品中測量氣體濃度
Rugged construction can handle harsh plant conditions and high sample pressures 堅固強化的結構可承受嚴苛的廠區條件和高樣品壓力
Fast response time to improve plant productivity 快速反應時間以提高工廠生產力
Compact design for easy insertion into a process line or a flow chamber 精簡設計，可輕鬆整合入工序或流動室
